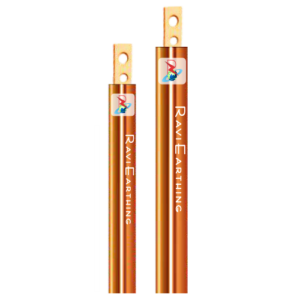

Copper Bonded Rods

The Copper Bonded Rods that are manufactured at Ravi Earthing are made from high tensile steel and each rod is molecularly bonded with 99.9% pure electrolytic copper on the low carbon steel rod in accordance with international standard such as UL

These Copper Bonded Rods give high protection against corrosion and electrochemical reaction when buried in the ground.

For deep driving to depths, it is necessary to obtain good conducting level for uniform low-resistance grounds. The features are same as of Copper Bonded Rods or Copper Plated Rods for Earthing. Cold-rolled threads at each end for joining the various lengths of rods together with couplings or Dowel. Cold-rolled threads which are stronger than cut threads provide the added strength of continuous, unbroken grain flows.

Category:
Description

Advanced features

Advanced features

  • Long-lasting & maintenance free hazards of copper coated rods
  • Unique manufacturing process ensures uniform coating thickness
  • Easy to install and unbreakable
  • Corrosion free while providing the lowest resistance to ground
  • Very economical to use

Advantages

Cost-effective:

Being the manufacturer of copper bonded earth rods, we have full control over the quality, design and the price of the products.

Customization:

We customize all our grounding rods in the shortest possible time

Exceptional delivery time:

Well-known for delivering our services in minimum feasible time

Using the right Technology:

A unique amalgamation of the latest technologies along with effective engineering skills.



Applications

  • CNC Machine
  • Lightning Protection System
  • Power generators
  • Solar system
  • Telecommunication Towers
  • Microwave Antennas
  • Transmission and power generators
  • Substations
  • Equipment Body Earthing
  • Computer and Data Processing Centers
  • Manufacturing Facilities and Refineries

Specifications

Rod Diameter (MM) Lenght (Mtr)
17 mm 1, 2 & 3 mtr
19 mm 1, 2 & 3 mtr
25 mm 1, 2 & 3 mtr
32 mm 1, 2 & 3 mtr
