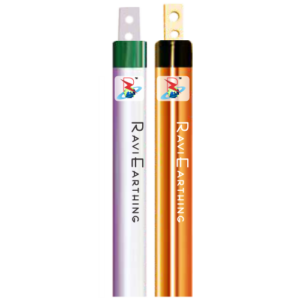

Copper Earthing Electrode

Ravi Earthing offers Copper Earth Electrodes, which is an electrical system to make a connection with the ground and conductive electrode hidden deep in the ground, which is linked to the exposed metal parts of the equipment. It is designed in a such way so that they can easily direct the fault current to the ground.

Chemical Earthing also takes care of all the safety devices such as MCB MCCB trip, along with the disconnection of power that makes faulty equipment’s risk-free. These are the two prime reasons that assure the proper Earthing and installation of chemical Earthing system.

With the advancement in technology problems Copper Grounding Electrode was introduced which technically removed all the problems associated with the traditional grounding systems and hence revolutionized the way of Copper Earthing.

Harnessing this technology, we also offer end to end solutions of safe and secure Earthing. We bring forward a large collection of maintenance free copper grounding system that makes us a major safe Copper Earthing Electrode Manufacturer.

Category:
Description

Features

  • Made of Electrolyte Class raw material which is connected to the equipment by strips and other accessories.
  • We use special compounds to fill up the earth-pit, in the region of the Copper electrode,
  • Product is a fine blend of innovation and cutting edge technology.
  • Provide an unbelievably longer operational life of 20-30 years.

Efficient Grounding Systems reduce the risk of electrical arcing and fires. The Ravi’s Copper Earthing Electrode improves reliability for many applications, including:

  • Lightning protection systems.
  • Prevention of accidents caused by static charge and stray currents.
  • Protection of central communications, electronics, and AC power systems.
  • Meeting grounding safety requirements for electrical substations.
  • Ground fault neutralization.
  • Safeguarding critical instrumentation and process control equipment

Advantages

  • Petrochemical, LNG
  • Nuclear Facilities
  • Data Center
  • Telecom
  • Broadcasters Process Control and Automation
  • Hospitals
  • 911 Centers Government
  • Military and Defense Installations
  • T&D Operations
  • Substations
  • Wind Turbines

Specification

Pipe Outer Diameter (mm) Length (mtr) Pure Copper Flat Size (mm) CU Bonded Terminal Size (mm)
40 mm 2 & 3 mtr 25 x 6 mm 32 x 6 mm

Related products

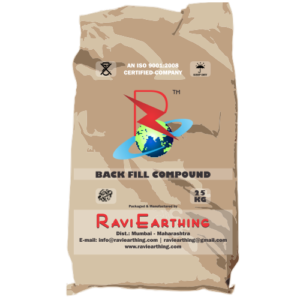

Back Fill Compounds

Back Fill Compound is a supreme quality Chemical Earthing Combination which can achieve lower ohmic value in tricky soil like rocky or sandy soil having high soil resistivity value. BFC is a unique combination of ace graded granulated chemicals or Minerals which are Highly Electric Conductive and of High water retaining Capacity BFC is basically an Earth filling compound having hydrated aluminum silicate as its essential element, which it has a natural tendency to absorb a huge amount of water and transform itself into a thick jelly when it comes in contact with water. BFC is a fine composite of prime quality leading non corrosive minerals. BFC helps Earthing Electrodes and Rods to increase its surface area and to decrease the earth's resistance. BFC is widely used and approved by MOD, Railways, Electric Utility Manufactures and Water Utility Manufactures which help their products work in an advantageous ways.

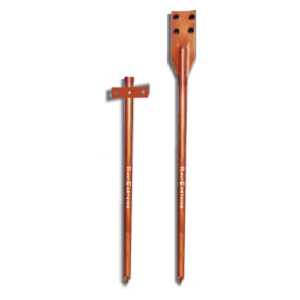

Copper Bonded Electrode

Ravi Earthing is one of the foremost manufacturer of Copper Bonded Electrode. Our Highly experienced team and state of art techniques help us to serve you with customizable units of Copper Bonded Electrode for your valuable utilities. Our Copper Bonded Electrodes are RDSO comply - RDSO/PE/SPEC/PSO109-2008 with different dimensions and sizes. Apart from being one of the largest manufacturers of Earthing System, we at Ravi Earthing do not stop just here, we keep on adding new and technically advance products to our list. Copper Bonded Electrode is a highly advanced product, which is based on global technology and provides superior resistance against oxidation; it also has better product life than a simple GI Electrodes. Its uniformly coated thickness ensures stable performance, making it a cost effective option for users.

Superior Corrosion Resistance:

The thickness of copper on the copper bonded earthing electrode is 100 / 250 micron; With superior corrosion resistance. it ensures long product life.

Excellent Electrical Capability:

With the electrical conductivity of 20%, our copper bonded earth electrode has excellent electrical capability. It our dissipate fault current effectively.

Wide Applications:

Our copper bonded earth electrode can be used widely to ground building and foundation on any change of soil temperature, humidity, PH value etc.

Easy to Install

We provide professional grounding attachment parts for easy and quick installation with minimum cost.

Copper Bonded Rods

The Copper Bonded Rods that are manufactured at Ravi Earthing are made from high tensile steel and each rod is molecularly bonded with 99.9% pure electrolytic copper on the low carbon steel rod in accordance with international standard such as UL These Copper Bonded Rods give high protection against corrosion and electrochemical reaction when buried in the ground. For deep driving to depths, it is necessary to obtain good conducting level for uniform low-resistance grounds. The features are same as of Copper Bonded Rods or Copper Plated Rods for Earthing. Cold-rolled threads at each end for joining the various lengths of rods together with couplings or Dowel. Cold-rolled threads which are stronger than cut threads provide the added strength of continuous, unbroken grain flows.

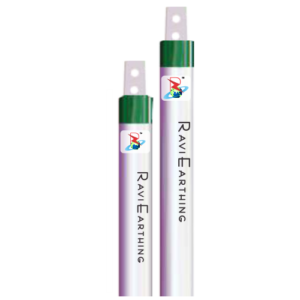

GI Earthing Electrodes
